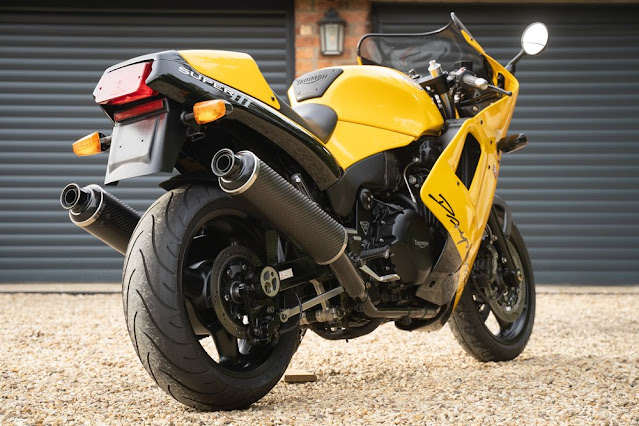

Again in 1993, Triumph have been already displaying indicators that they’d be a power to be reckoned with and their Daytonas have been displaying the best way. Although not as nimble as others in its class, and with a quite extra top-heavy geometry, the triple cylinder engine gave again a number of character with its famend rumble and bulletproof design. Now not was ‘character’ a synonym for unreliability, these machines have been designed to maintain working for ever. Even hitting the 9,500 rpm redline would not stress the Daytona Tremendous III.

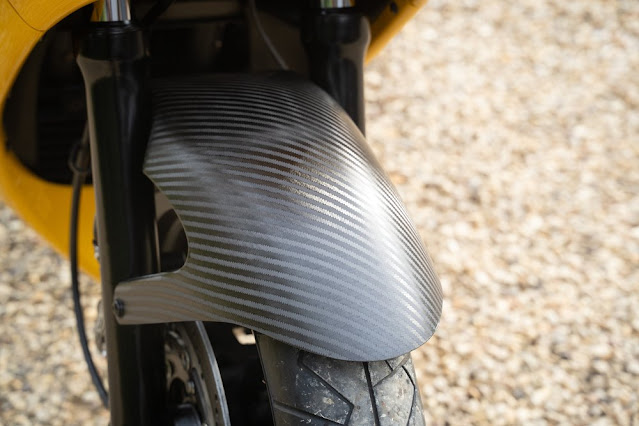

Derived from the three-cylinder Daytona 900, the brand new mannequin is provided with many particulars in carbon fiber (mudguards, chain cowl and exhaust lining). The braking system is provided with a 6-piston caliper. However probably the most fascinating adjustments are on the within. Because of the collaboration with “Cosworth Castings”, the engine casings are revised, thus lowering the load of the engine by 4.5 kg. Different adjustments made are the revision of the automated adjustment system of the play of the first distribution chain and of the relative warmth therapy. The brand new camshafts provide new, extra stringent diagrams to enhance the supply torque. The compression ratio will increase to 12: 1 because of excessive compression pistons and a brand new machining of the top. All this work results in an output of 115 hp. This mannequin, inbuilt a restricted collection, is totally assembled by hand.
Nevertheless regardless of all of the enhancements, it nonetheless did not actually make it a real sports-bike because of the weight… but it surely did make the perfect sports-tourer cash may purchase.
You do have to be cautious when shopping for a Tremendous III although as there are various fakes on the market. Do not be persuaded if somebody says that the unmarked 6-pot entrance brake caliper is authentic tools. If unsure, get in contact with the TOMCC and confirm the body and engine numbers.
Manufacturing began in late 1993 and completed in the beginning of 1996 with fashions being exported to all corners of the globe.
MY1994 SPECIFICATIONS
Motor
Template
3 Cylinders in line
Valves
12 DOHC
Displacement
885 cc
Bore / Stroke
76 mm x 65 mm
Compression ratio
12: 1
Weight loss plan
3 MIKUNI BST 36mm CV carburettors
Liquid cooling
Cooling circuit capability 2.8 lt
I unload
Two silencers, one on both sides (3 in 2)
Remaining transmission
Chain (??/??)
Clutch
9 discs in oil bathtub
Trade
6 reviews
Lubricant capability
4 lt
Electrical system
Battery
YUASA YB14L-A2 (12V – 14Ah)
Alternator
12V – 25A
Alternator voltage
14.5V @ 5500rpm
Energy on
Digital, inductive transistor
Digital engine rpm limiter
9700 rpm
3 x NGK DPR 8EA-9 spark plugs
Chassis and Instrumentation
Chassis
Metal
Swingarm
In extruded aluminum
Entrance wheel
17 “x 3.5” aluminum rim
Rear wheel Aluminum rim 17 “x 5.5”
Entrance tire
120/70 x 17 V280
Rear tire 180/55 x 17 V280
Entrance suspension
43mm telescopic fork
Changes: compression, preload and hydraulic brake
150 mm tour
Rear suspension Fuel single shock absorber
Changes: preload and hydraulic brake
126 mm journey
Entrance brake Two 310mm floating discs with six-piston caliper
Rear brake A 255mm disc with two-piston caliper
Show instrumentation / features
Tachometer, speedometer, complete and partial odometer, water thermometer and repair warning lights (together with reserve)
Colours
Racing Yellow
Dimensions
Size
2152 mm
Width (handlebar)
690 mm
Top (with out mirrors)
1185 mm
Saddle top
790 mm
Wheelbase
1490 mm
Quill inclination / Path
27 ° / 105 mm
Complete gasoline tank capability
25 lt
Gasoline reserve (faucet)
5 lt
Gasoline reserve warning gentle ignition degree
7 lt
Curb weight
-Dry weight
211 kg
Most load
181 kg
Efficiency
Max energy
115 hp / 84 kW @ 9500rpm
Max torque89 Nm @ 8500rpm
