2024 KTM XC-W, XCF-W, and EXC-F Fashions Preview

by

[ad_1]

Whereas producers like Honda and Yamaha preserve new fashions fully below wraps till formally unveiled to the general public, KTM is understood for giving customers sneak peeks of its soon-to-be-released grime bikes. One instance we see yearly is the 450 SX-F Manufacturing facility Version, and one other current occasion was the shadowed photographs of the 2023 motocross vary.

We started to imagine the 2024 KTM enduro and twin sport bikes could be fully overhauled upon seeing these fashions with orange frames final yr—a coloration reserved for Manufacturing facility Editions and the ultimate yr of a KTM mannequin technology. For instance, the 2022 KTM motocross and cross-country vary had orange frames after which had been all-new in 2023.

Associated: 2024 KTM Motocross Bikes First Look

One other robust indication that the Austrian producer’s headlight-equipped grime bikes will enter a brand new technology comes from seeing Manuel Lettenbichler’s exhausting enduro racebike. The Purple Bull KTM Manufacturing facility Racing rider will compete this weekend within the opening spherical of the 2023 FIM Arduous Enduro World Championship, the Xross Arduous Enduro Rally in Serbia, aboard a 2024 KTM 300 EXC (the equal of a 300 XC-W mannequin in the USA) that’s a lot totally different than the 2023 machine.

Let’s look at photographs of Lettenbichler’s journey to see what we’d count on on the 2024 KTM enduro and twin sport fashions in the USA.

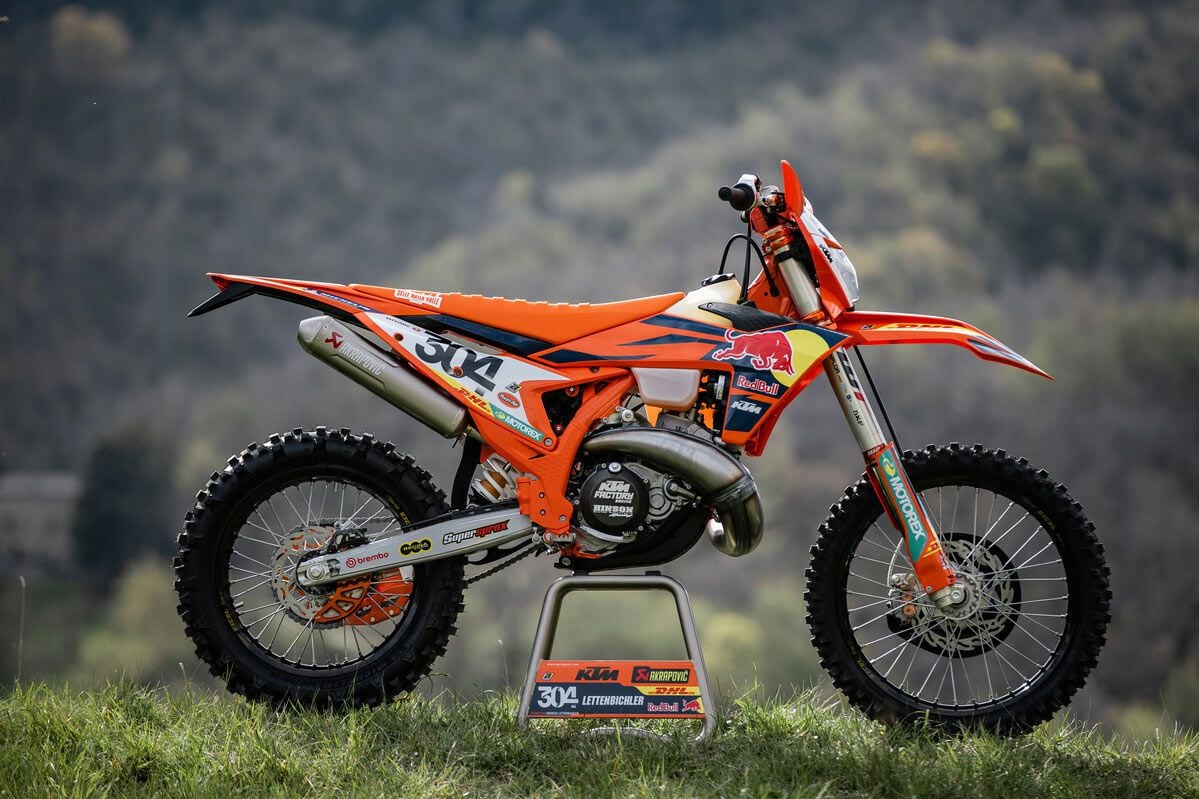

If Manuel Lettenbichler’s bike is any indication, the 2024 KTM enduro and dual sport motorcycles will be all-new.

If Manuel Lettenbichler’s bike is any indication, the 2024 KTM enduro and twin sport bikes can be all-new. (KTM/)

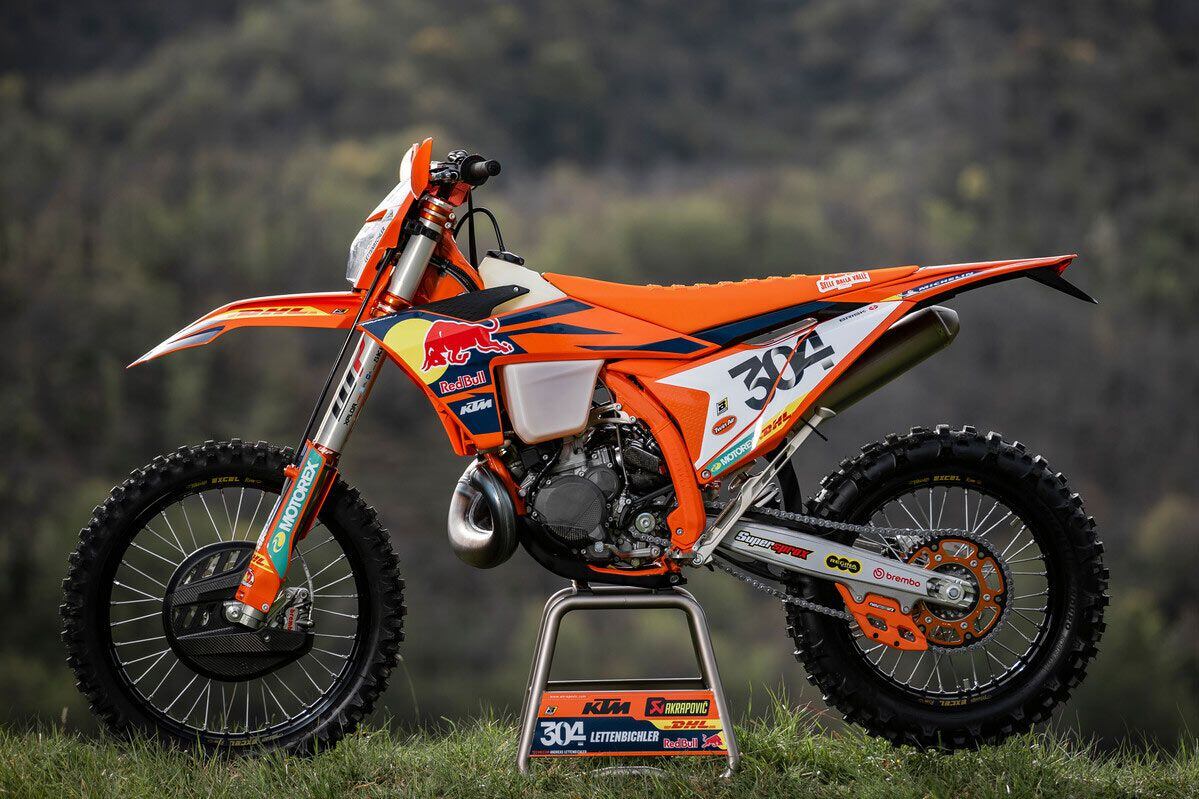

The German rider will defend his FIM Hard Enduro World Championship title aboard the 2024 KTM 300 EXC, which is the same as the 300 XC-W model in the United States.

The German rider will defend his FIM Arduous Enduro World Championship title aboard the 2024 KTM 300 EXC, which is similar because the 300 XC-W mannequin in the USA. (KTM/)

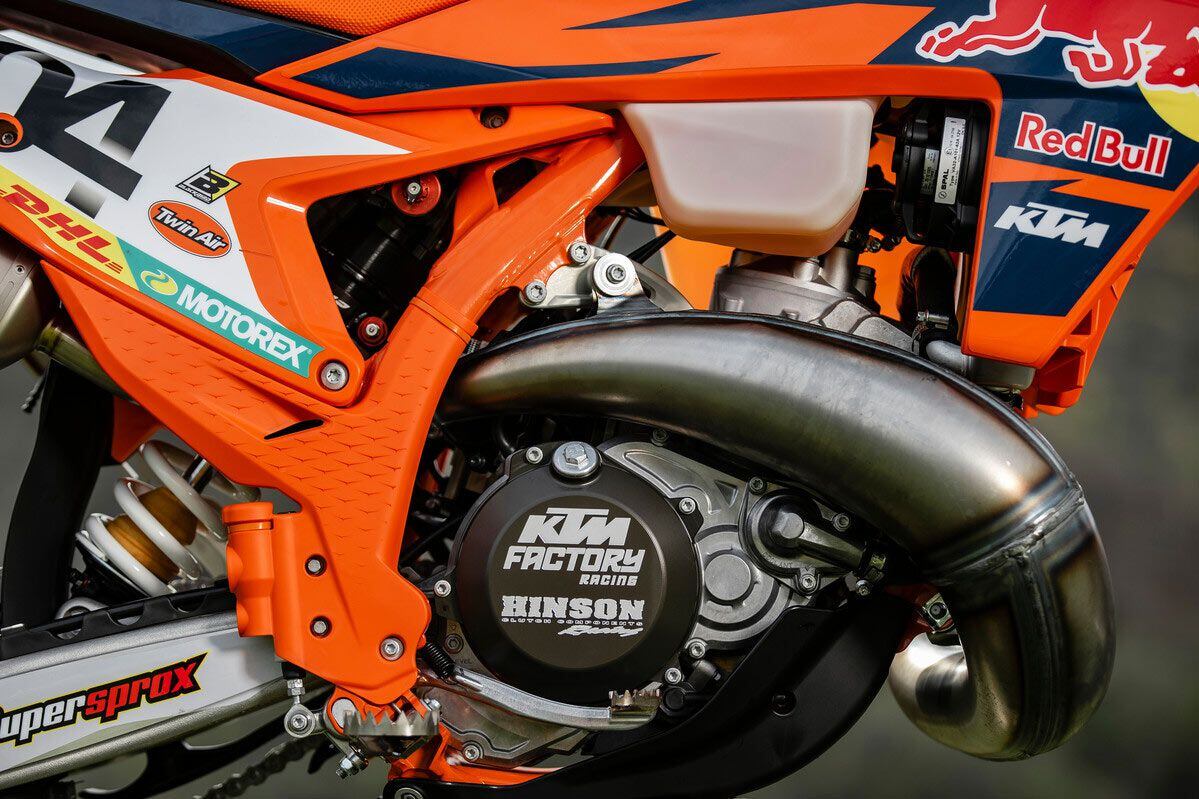

The engine is one of the biggest talking points. The inner right-side cover appears identical to the 2023–2024 KTM 300 SX motocrosser’s and 300 XC cross-country model’s…

The engine is likely one of the greatest speaking factors. The internal right-side cowl seems an identical to the 2023–2024 KTM 300 SX motocrosser’s and 300 XC cross-country mannequin’s… (KTM/)

Associated: Professional Wrenching Tip—Making ready Your Bike for Arduous Enduro

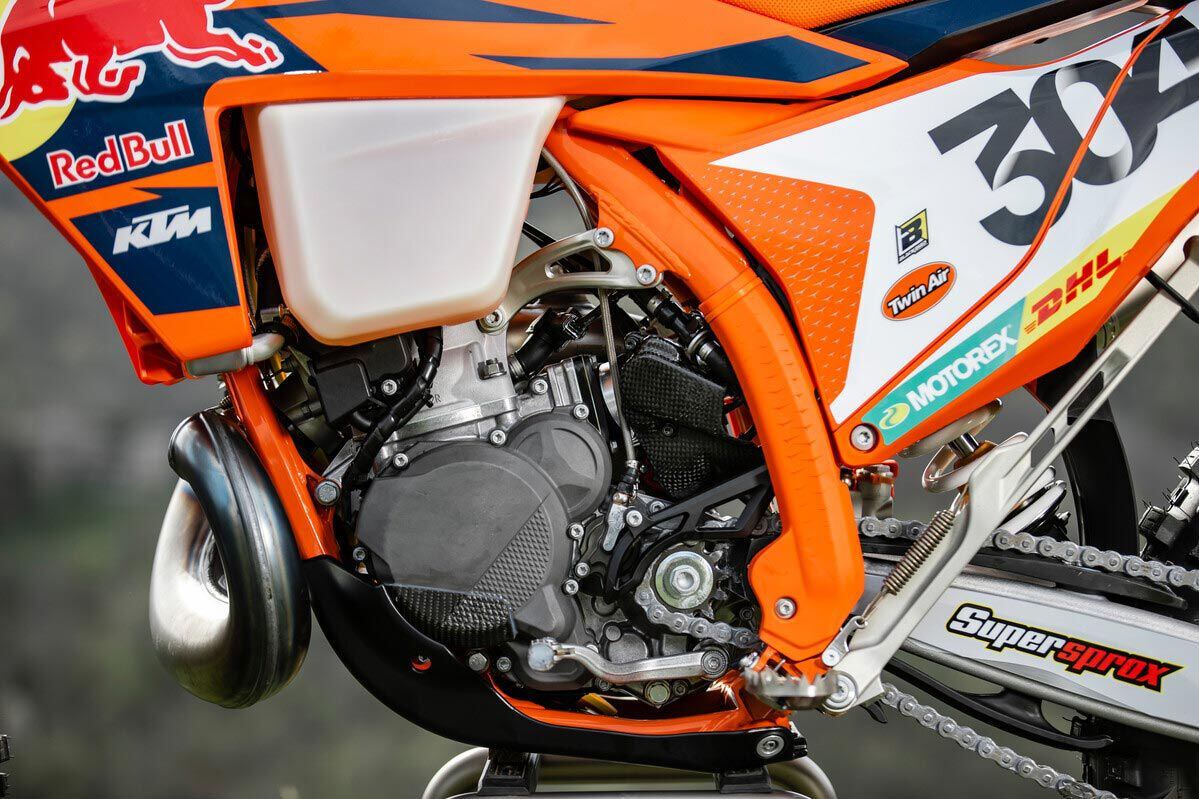

And the same goes for the left side of the engine such as the ignition cover. Although somewhat hidden by a carbon fiber guard, the throttle body setup looks very similar to the 300 SX’s and 300 XC’s as well, leading us to believe the two-stroke enduros will have throttle body injection (TBI) for MY24.

And the identical goes for the left facet of the engine such because the ignition cowl. Though considerably hidden by a carbon fiber guard, the throttle physique setup seems similar to the 300 SX’s and 300 XC’s as nicely, main us to imagine the two-stroke enduros can have throttle physique injection (TBI) for MY24. (KTM/)

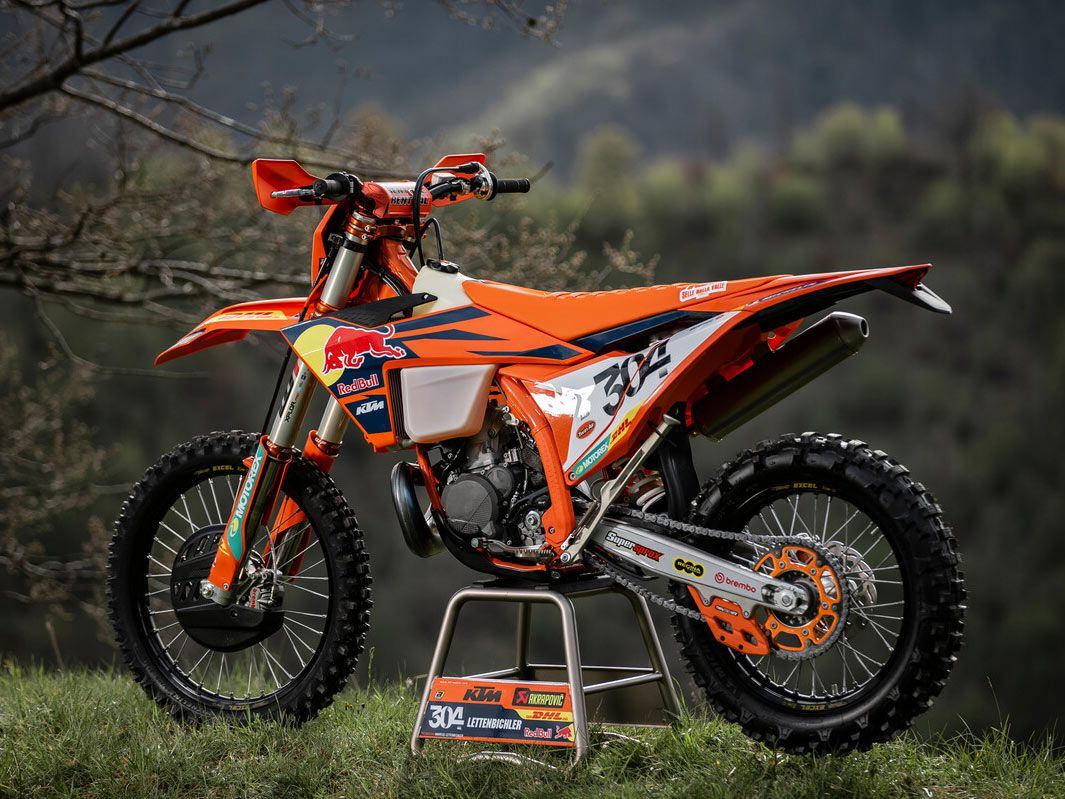

Another tell that KTM is going away from transfer port injection (TPI) on its XC-W models is the lack of an oil tank filler cap behind the frame’s steering head.

One other inform that KTM goes away from switch port injection (TPI) on its XC-W fashions is the dearth of an oil tank filler cap behind the body’s steering head. (KTM/)

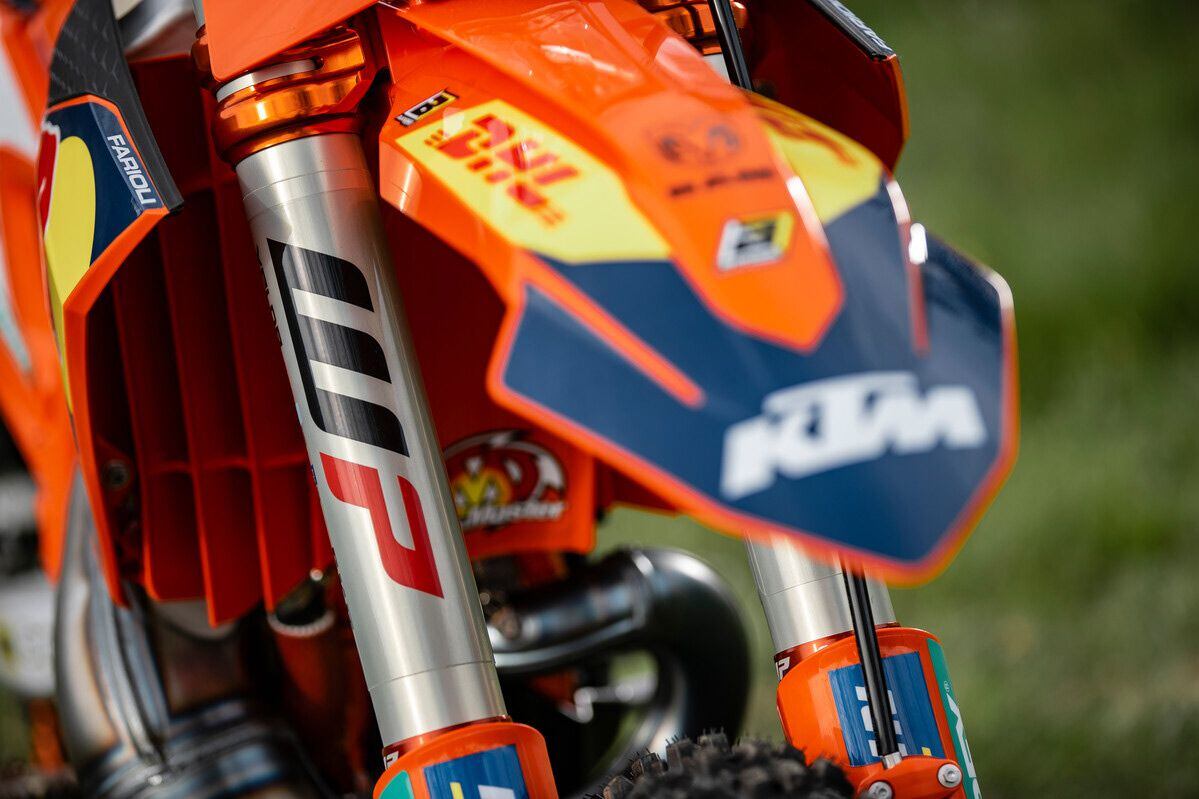

Fork will likely remain a WP Xplor 48mm open-cartridge coil-spring unit, but with updated internals to match the new chassis.

Fork will possible stay a WP Xplor 48mm open-cartridge coil-spring unit, however with up to date internals to match the brand new chassis. (KTM/)

Associated: 2024 KTM Cross-Nation Bikes First Look

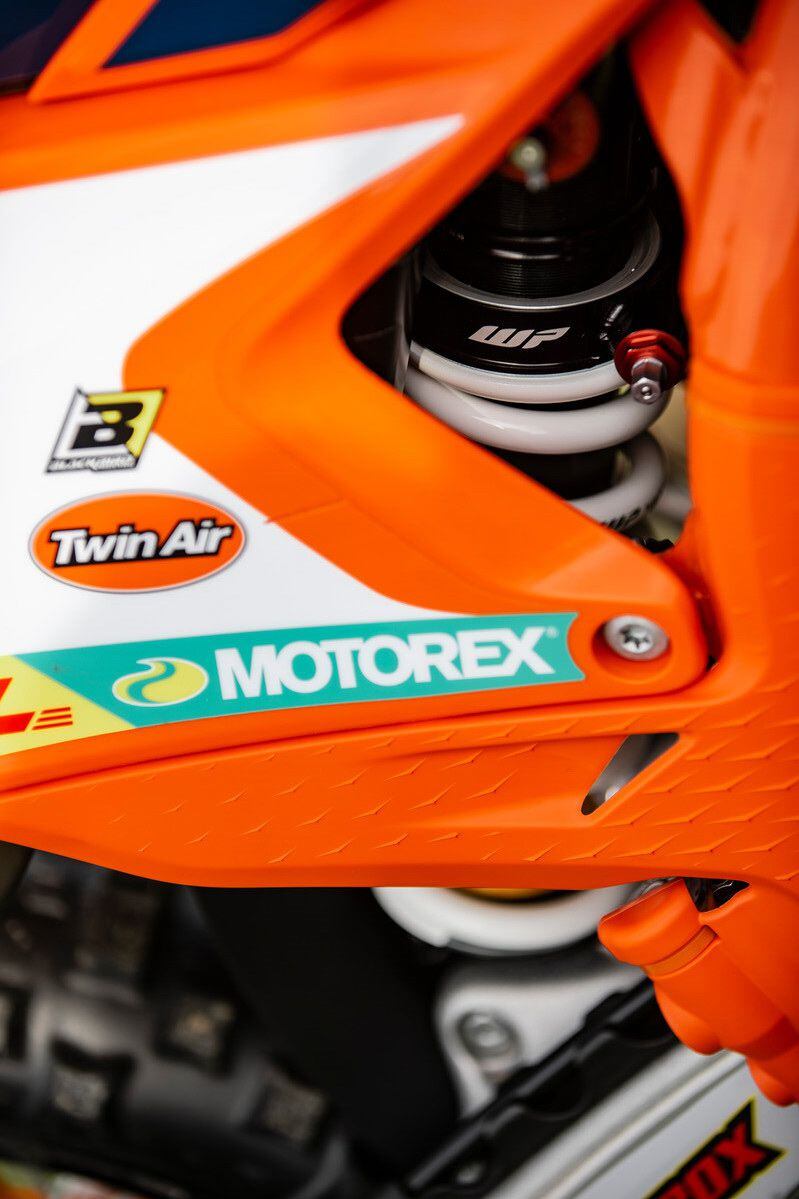

Lettenbichler runs an up-spec WP Pro Components shock, but we expect the production version will be shorter, lighter, and have toolless damping adjusters.

Lettenbichler runs an up-spec WP Professional Elements shock, however we count on the manufacturing model can be shorter, lighter, and have toolless damping adjusters. (KTM/)

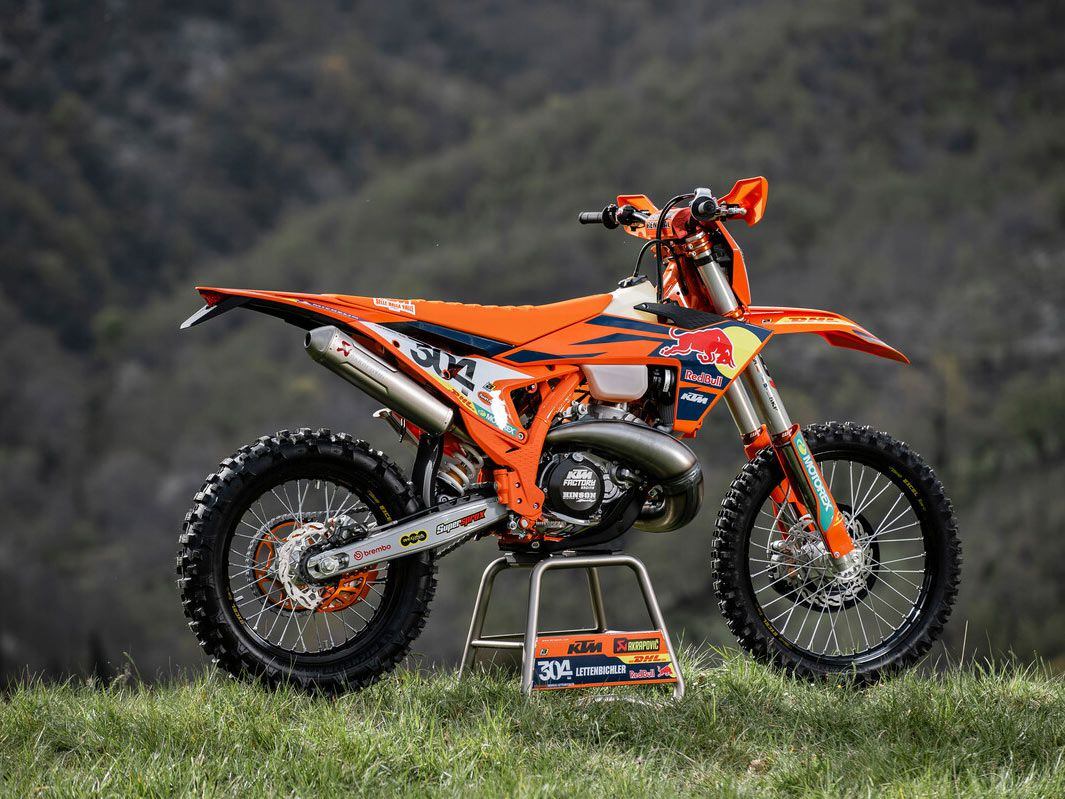

Another major difference from the prior-generation (2020–2023) enduro models is the frame, which appears somewhat similar to those of the 023–2024 KTM motocrossers and cross-country racers.

One other main distinction from the prior-generation (2020–2023) enduro fashions is the body, which seems considerably much like these of the 023–2024 KTM motocrossers and cross-country racers. (KTM/)

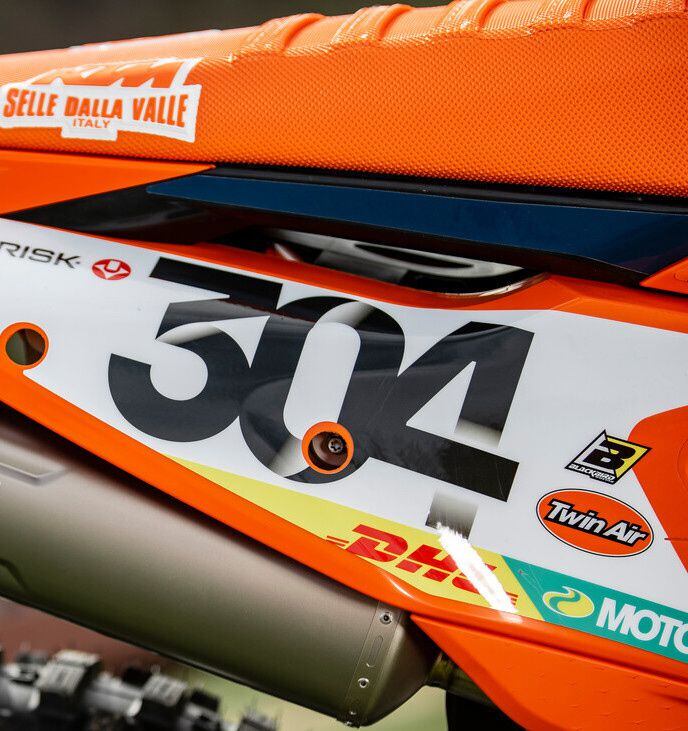

The rear portion of the bike indicates we’ll possibly see a new aluminum-polyamide hybrid subframe on the XC-Ws in 2024.

The rear portion of the bike signifies we’ll presumably see a brand new aluminum-polyamide hybrid subframe on the XC-Ws in 2024. (KTM/)

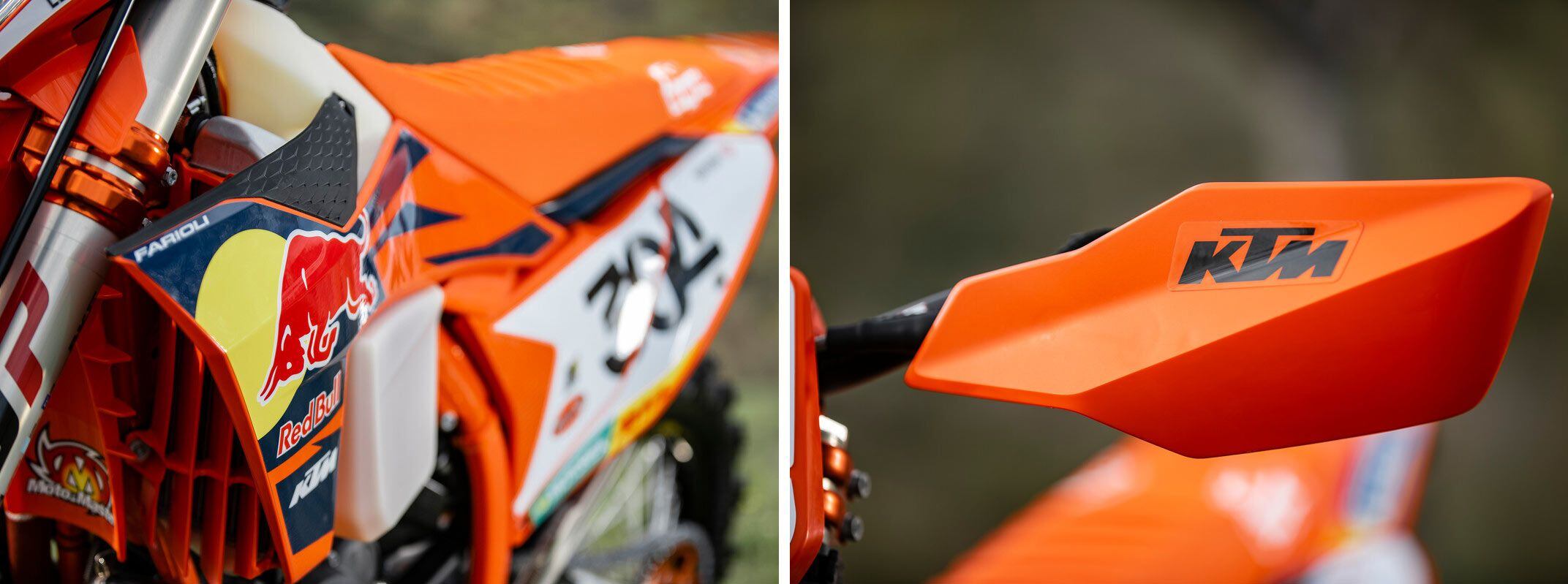

Bodywork including hand guards also mimics the latest-generation SX, SX-F, XC, and XC-F models.

Bodywork together with hand guards additionally mimics the latest-generation SX, SX-F, XC, and XC-F fashions. (KTM/)

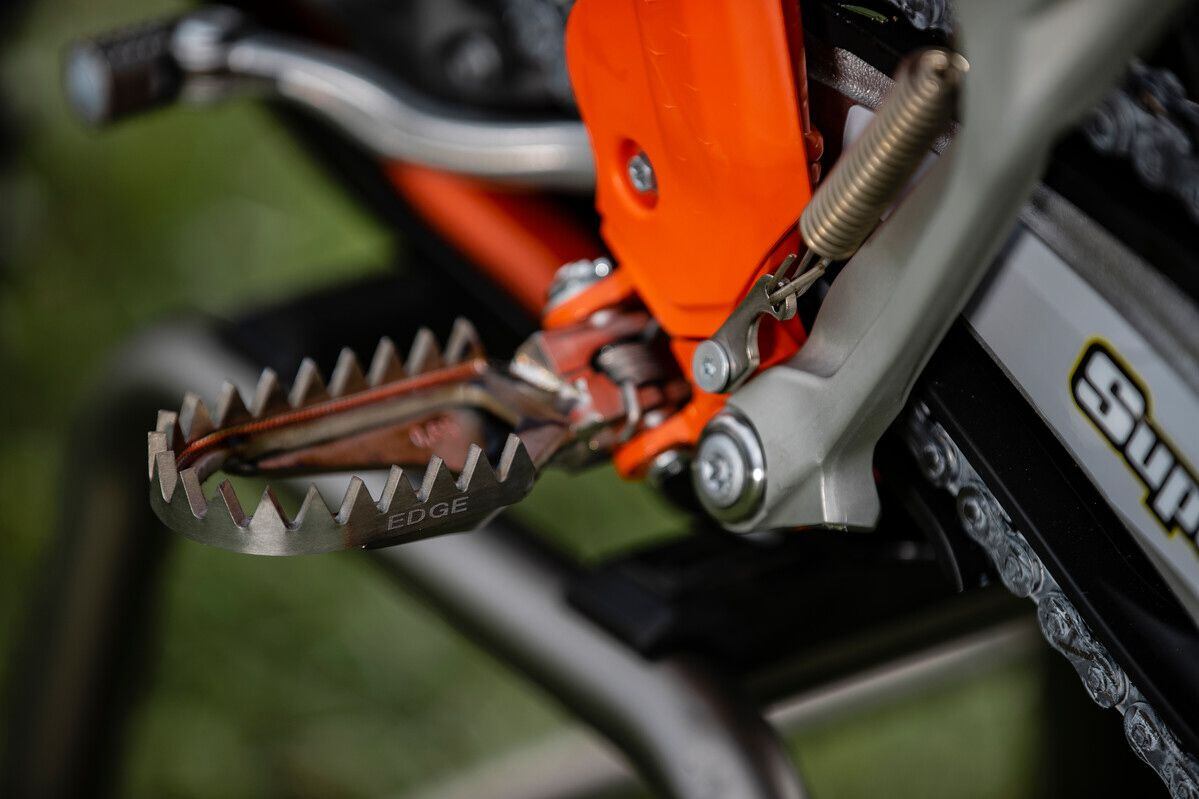

Footpegs won’t be Raptor Titanium Edge units, but will likely be new and repositioned inward on the frame.

Footpegs received’t be Raptor Titanium Edge items, however will possible be new and repositioned inward on the body. (KTM/)

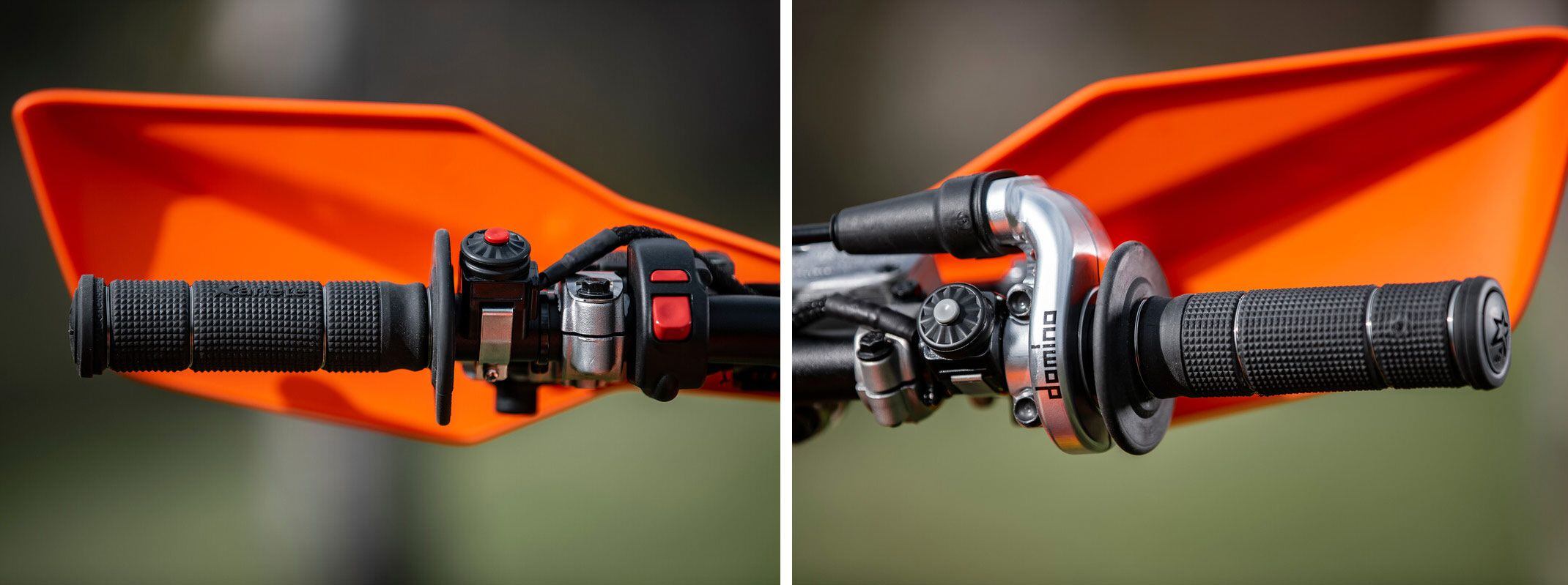

Although Lettenbichler’s machine uses a separate kill switch on the left and electric start button on the right, we expect the production models to have a combined engine start/stop switch on the right side of the handlebar.

Though Lettenbichler’s machine makes use of a separate kill swap on the left and electrical begin button on the fitting, we count on the manufacturing fashions to have a mixed engine begin/cease swap on the fitting facet of the handlebar. (KTM/)
